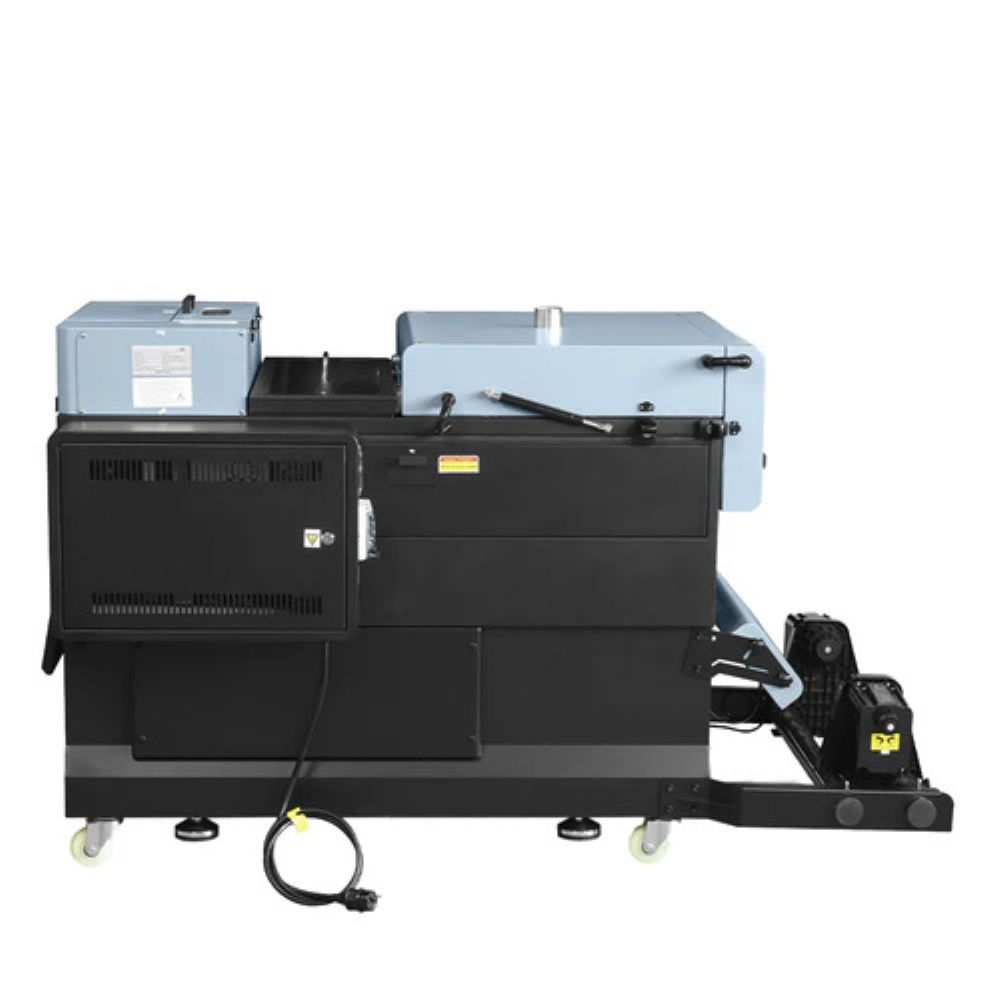

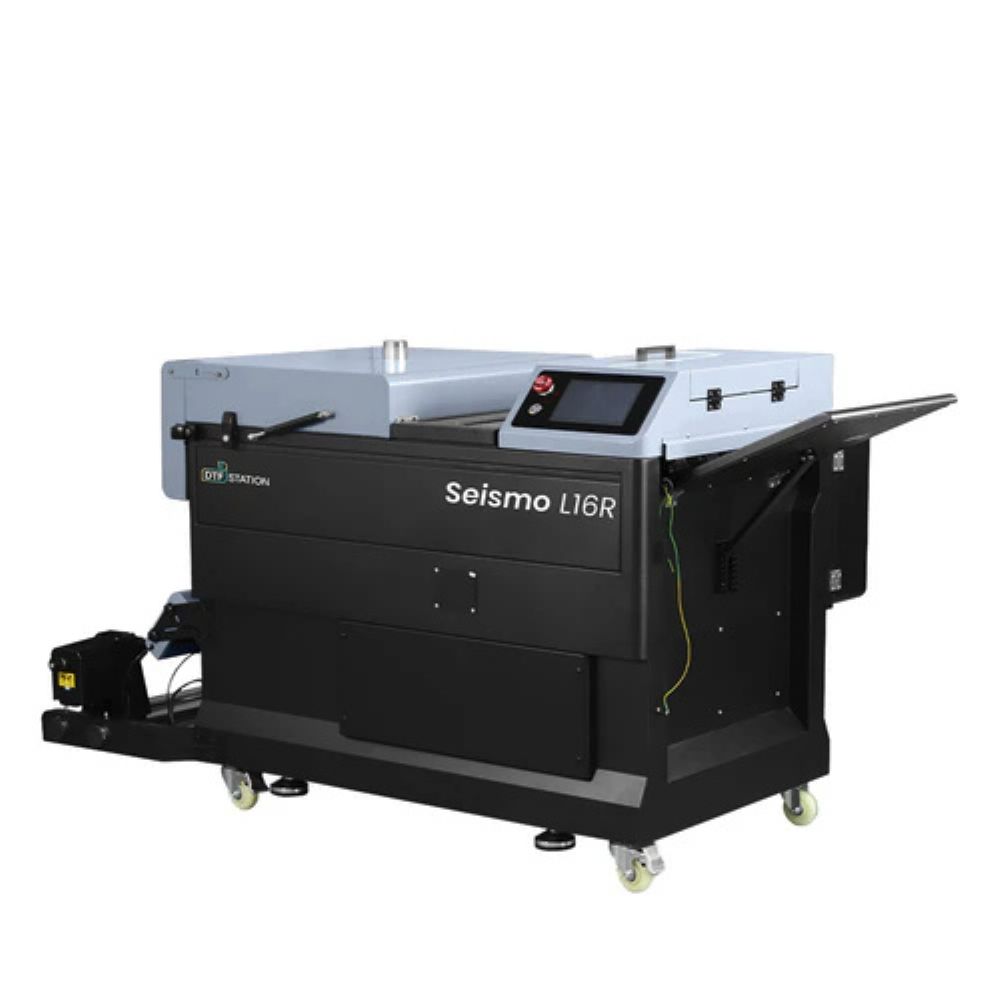

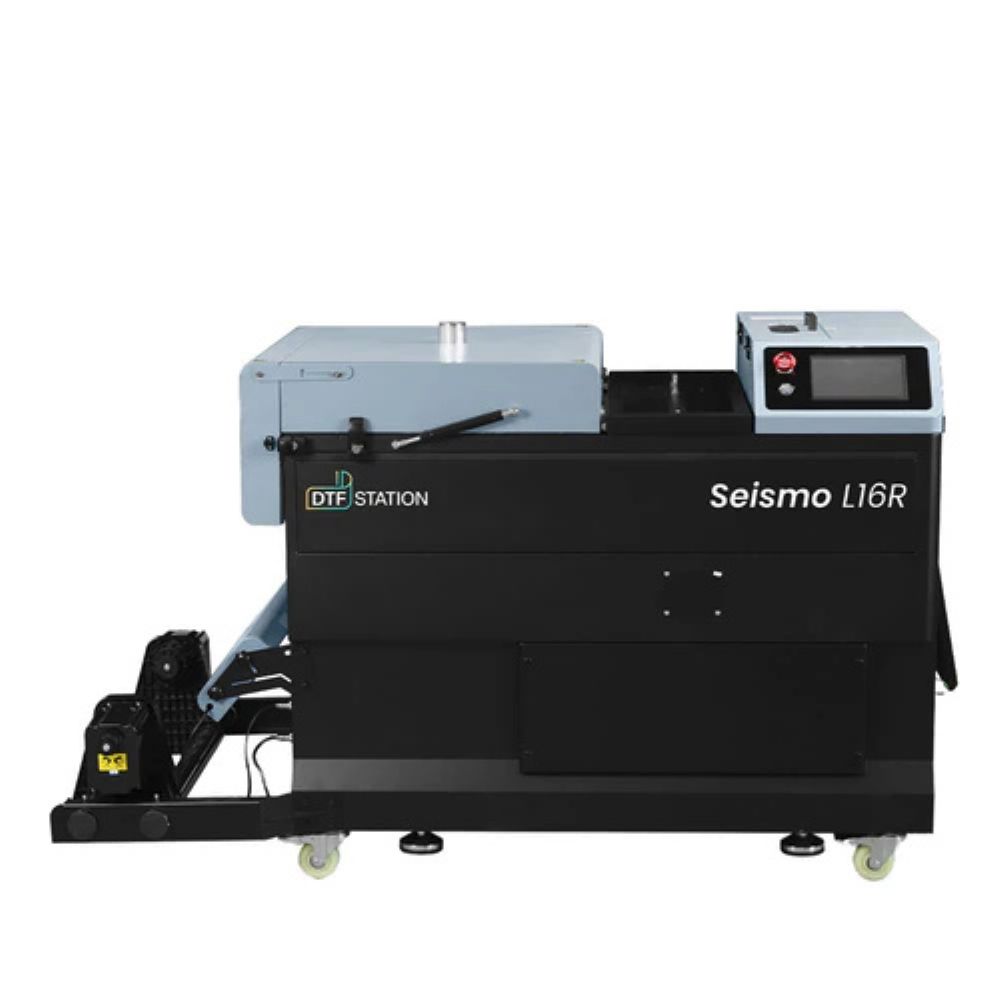

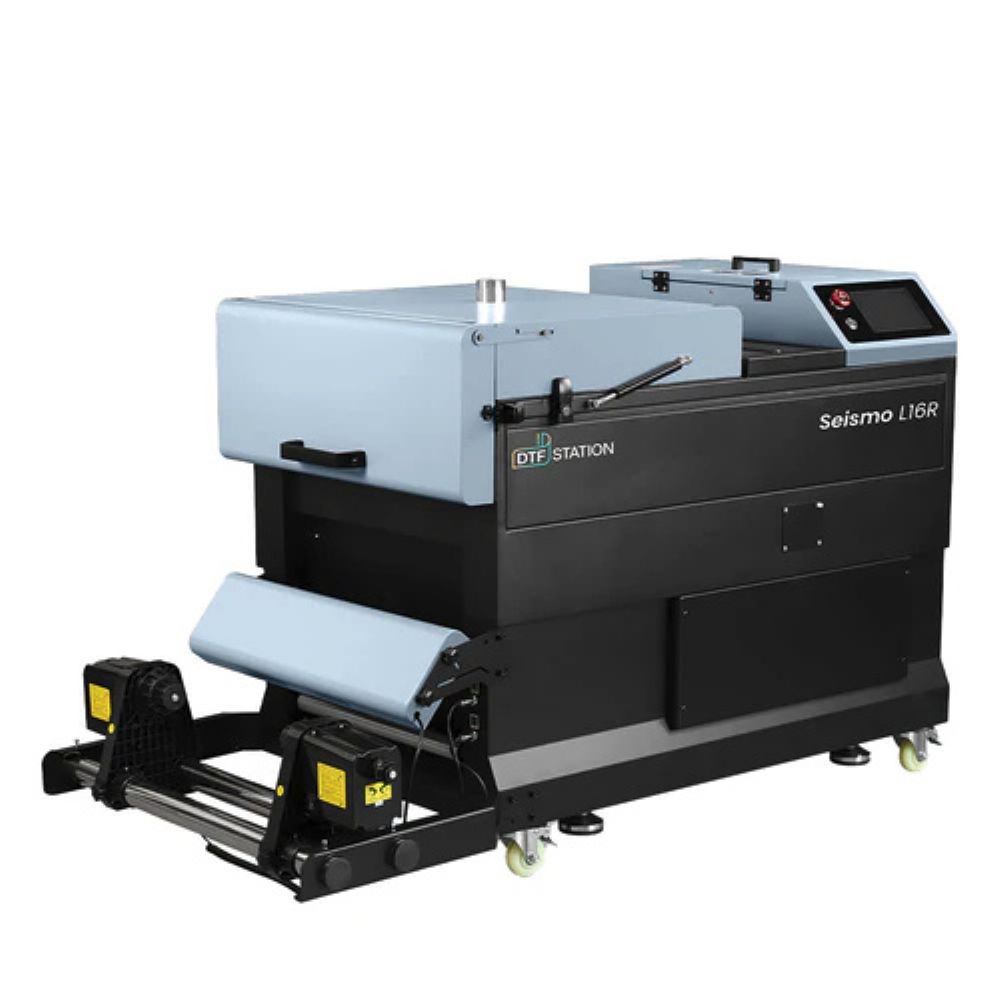

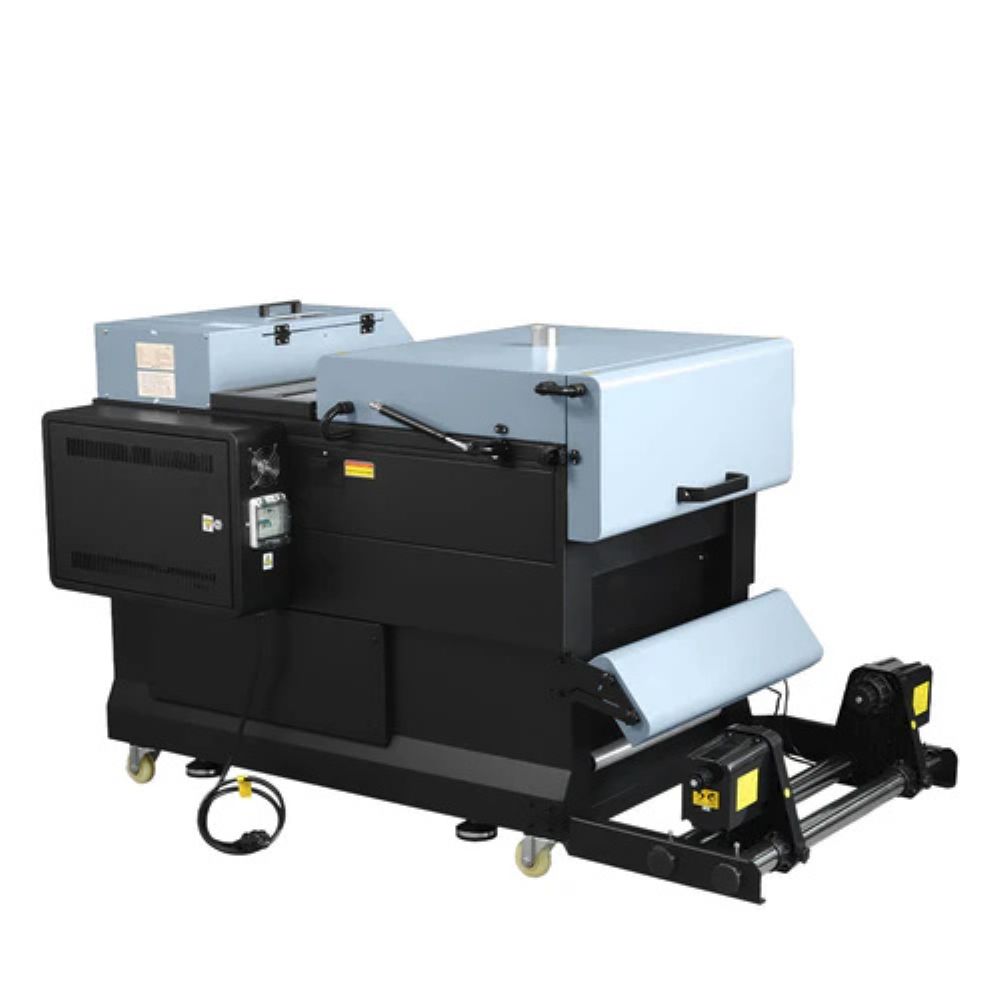

Seismo L16R DTF Powder Applicator and Dryer
The Seismo L16R is an intuitive, automatic powdering option for DTF business runners. It has an auto-recirculating system that collects excess powder for refilling and reuse, making it more efficient and cost-effective. The shaker is controlled by an intelligent sensor system, and users simply need to make sure to recycle the ink and powder every 4 hours during operation.
ADDITIONAL DETAILSBenefits:- Improve efficiency
- Reduce material waste
- Save time and money
Features:- Large Media Width: The Seismo L16R has a large maximum media width of 18", allowing for the printing of larger designs without any issues. This feature provides greater design flexibility and allows printing on a wider range of materials
- Auto-Recirculating System: The Seismo L16R comes with an auto-recirculating system that automatically collects excess powder for refilling, eliminating the need for manual powder collection and refilling. This feature increases efficiency, saves time, and reduces the chances of powder spillage or mess
- Intelligent Sensor System: With the intelligent sensor system in place, the Seismo L16R ensures stable curving quality while consuming less power. This results in energy savings, reduces overall operating costs, and improves the quality of the final product
- Conveyor and Suction System: The conveyor and suction system on the Seismo L16R make it easier to feed the initial film into the machine, reducing setup time and effort. This feature improves overall efficiency and reduces the chances of film misalignment or errors
- Powder Filling Box: The powder filling box on the Seismo L16R provides a convenient way to refill the powder without causing any mess or spillage. This saves time, ensures even powder application, and improves overall efficiency

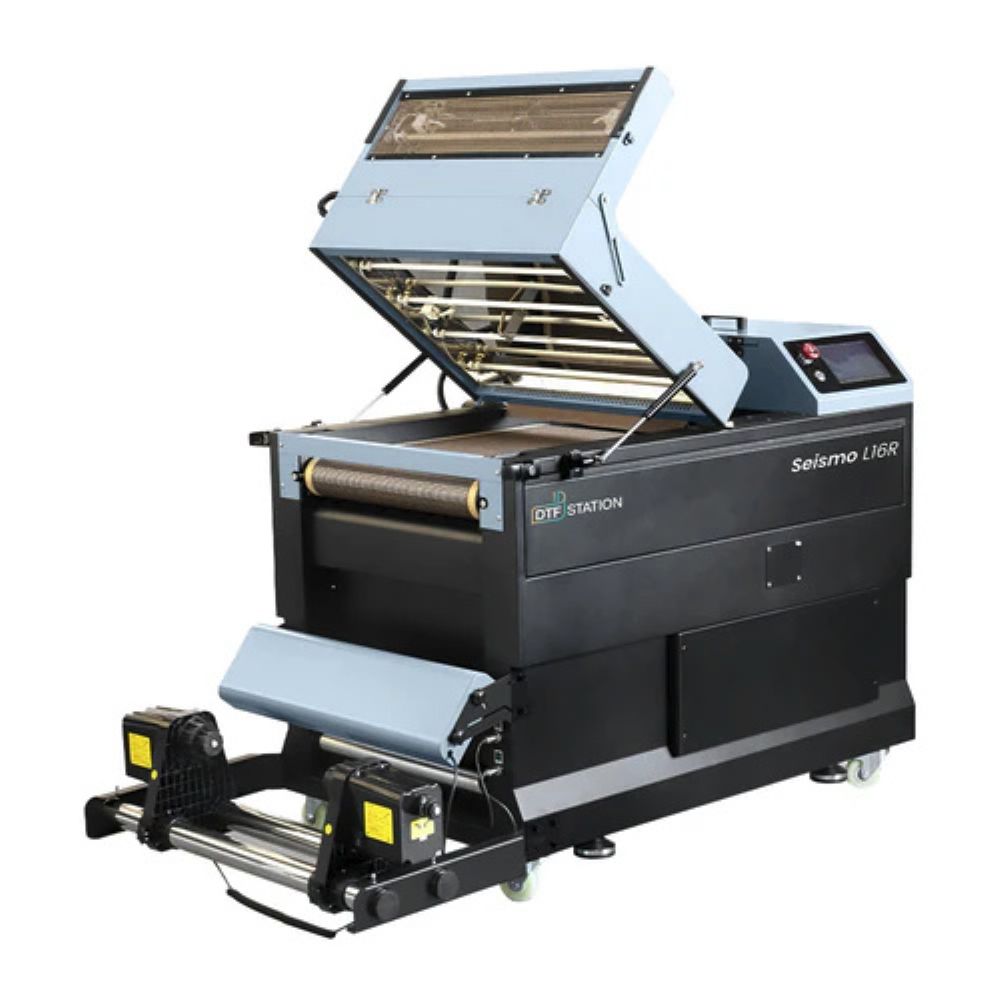

- Powder Drying Function: Its built-in powder drying function on the Seismo L16R dries the powder-coated film quickly and efficiently, reducing the drying time and improving overall efficiency. This feature ensures faster turnaround time and increases the number of prints that can be produced in a given time-frame
- Easy Maintenance: The Seismo L16R DTF powder shaker and dryer is easy to maintain, with simple cleaning procedures that can be completed quickly. This feature reduces downtime, ensures that the machine is always in optimal condition, and extends the lifespan of the machine
Specifications:- Max. media width: 18 in. (45 cm, A2)
- Max. amount of powder applied at one time: 4.5-6.5 lb (2-3 kg)
- Powder Filling Box: Yes
- Powder Collection Drawer: No
- Powder Filling Frequency: Every 4-5 Hours
- Machine Size (L x W x H): 63.43" x 34.33" x 39.19"
- Package Size (L x W x H): 55.9" x 44.49" x 43.82"
- Packaging Weight: 530 lb
- Power: 220V/3.5KW/16 Amps
- Daily Maintenance:
- Must reload powder every 4-5 hours (When paired with Prestige L2/XL2)
- Simple to clean at the end of the day - Suitable for: Users printing 5+ hours/day, looking for the most efficient and automatic powdering option
WARNING- Caution: Do not ingest or inhale powder or fumes when handling DTF Hot Melt Powder. Harmful if swallowed. Skin irritations may occur. Avoid contact with skin and eyes. If in contact with the eyes, rinse with large amounts of water. Wear protective clothing, gear, mask, and gloves when handling powder. If an allergic reaction persists or is accidentally ingested, seek medical help immediately.
