Features:

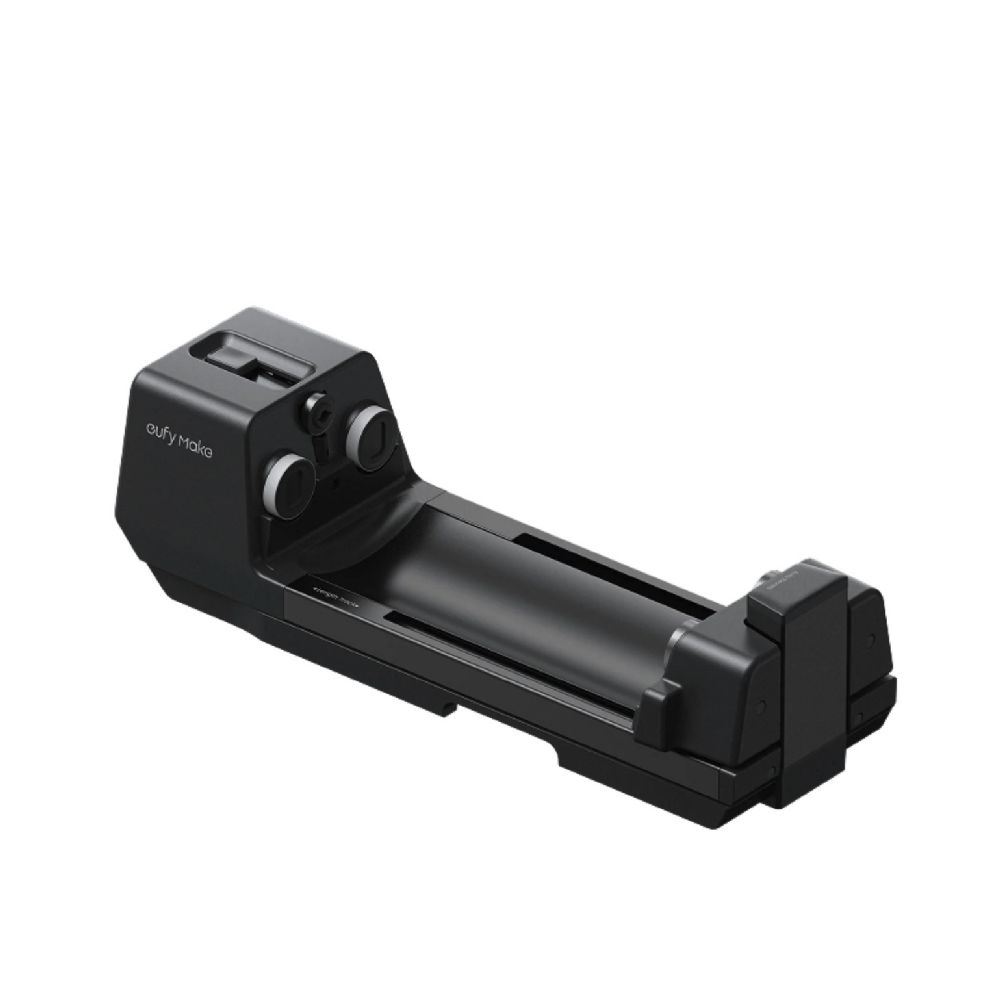

eufyMake Rotary Printing Attachment (V7220)

• Designed for use with the eufyMake UV Printer
• Enables direct printing on cylindrical and curved objects
• Suitable for mugs, bottles, tumblers, and similar items
• Supports printing on tapered surfaces with adjustable alignment
• Auto-leveling system for consistent and accurate printing
• Provides stable rotation for even image application
• Compact design for easy setup and operation

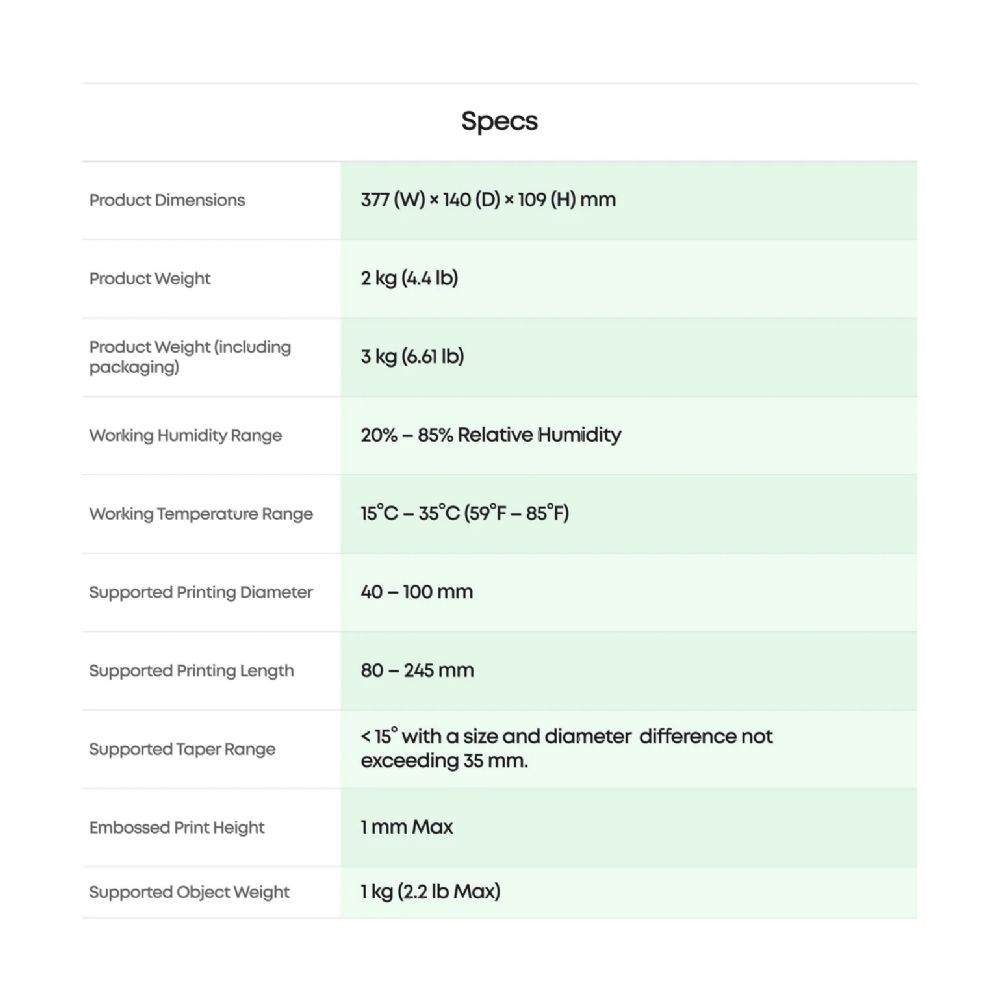

Specifications:

• Product Type: Rotary Printing Attachment
• Supported Diameter Range: 40 – 100 mm
• Supported Length Range: 80 – 245 mm
• Supported Taper Range: less than 15° (max diameter difference 35 mm)
• Maximum Object Weight: 1 kg (2.2 lb)
• Embossed Print Height: Up to 1 mm
• Compatibility: eufyMake UV Printer

Dimensions & Weight:

• Overall Dimensions: 377 mm (W) × 140 mm (D) × 109 mm (H)
• Product Weight: 2 kg (4.4 lb)
• Weight (Including Packaging): 3 kg (6.6 lb)

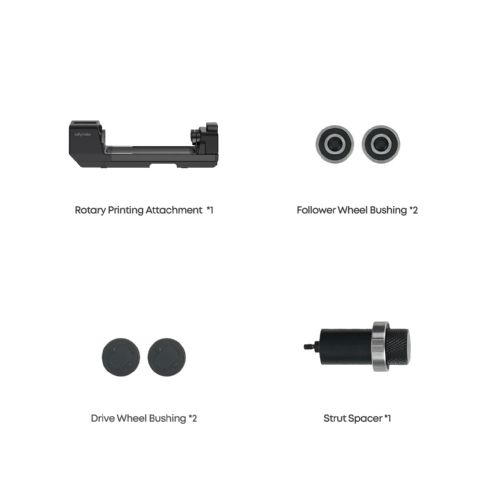

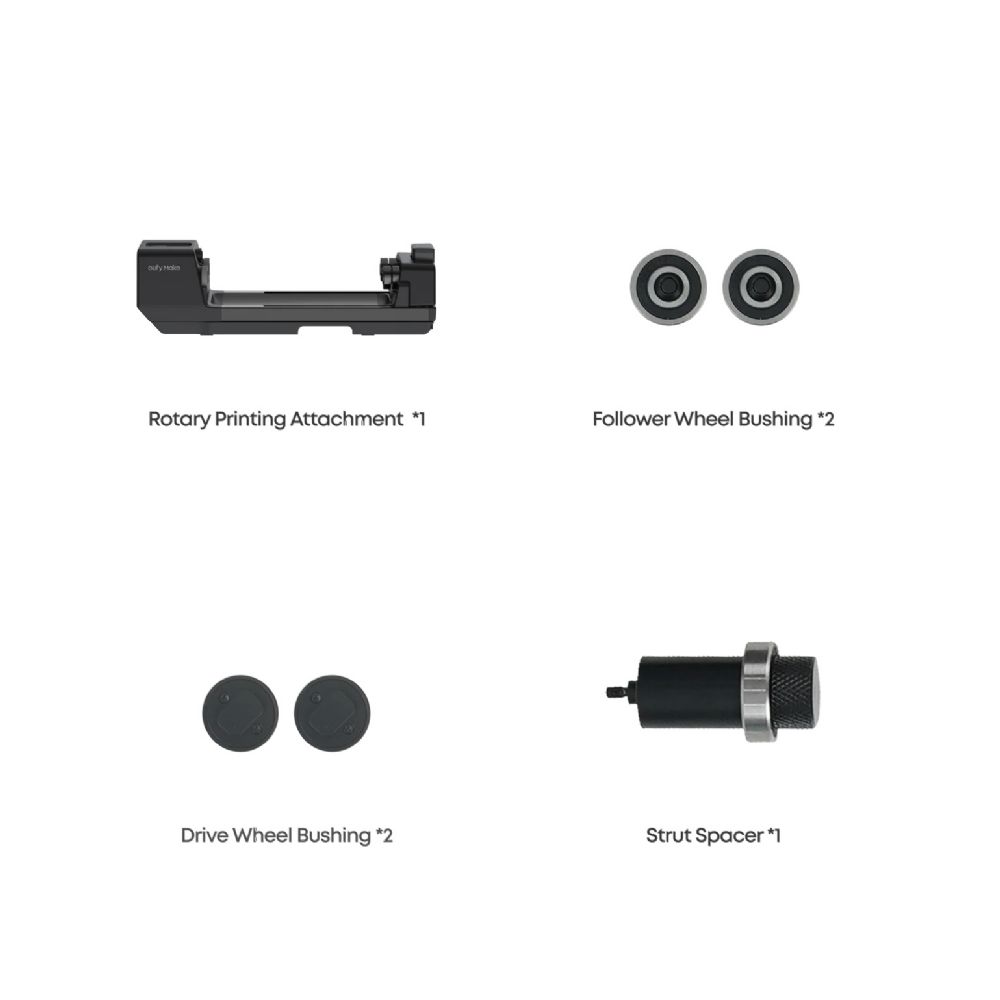

Includes:

• (1) Rotary Printing Attachment
• (2) Follower Wheel Bushings
• (2) Drive Wheel Bushings
• (1) Strut Spacer

Notes:

• For use with eufyMake UV Printer only
• Designed for cylindrical and tapered object printing
• Ensure proper alignment before printing
• Follow manufacturer setup guidelines for best results
