Product ID STX20H

Hotronix Hover Heat Press 16x20

$2,250.00

Account Registration Required to view Discounts and Purchase

Signup Here   Login Here

THIS ITEM WILL ship FROM THE FACTORY
Free Shipping exempt. If you are ordering online, we will contact you after you submit the order. If you would like a shipping quote before ordering,
Contact us with your address.

• Details
•   Video
•   Instructions

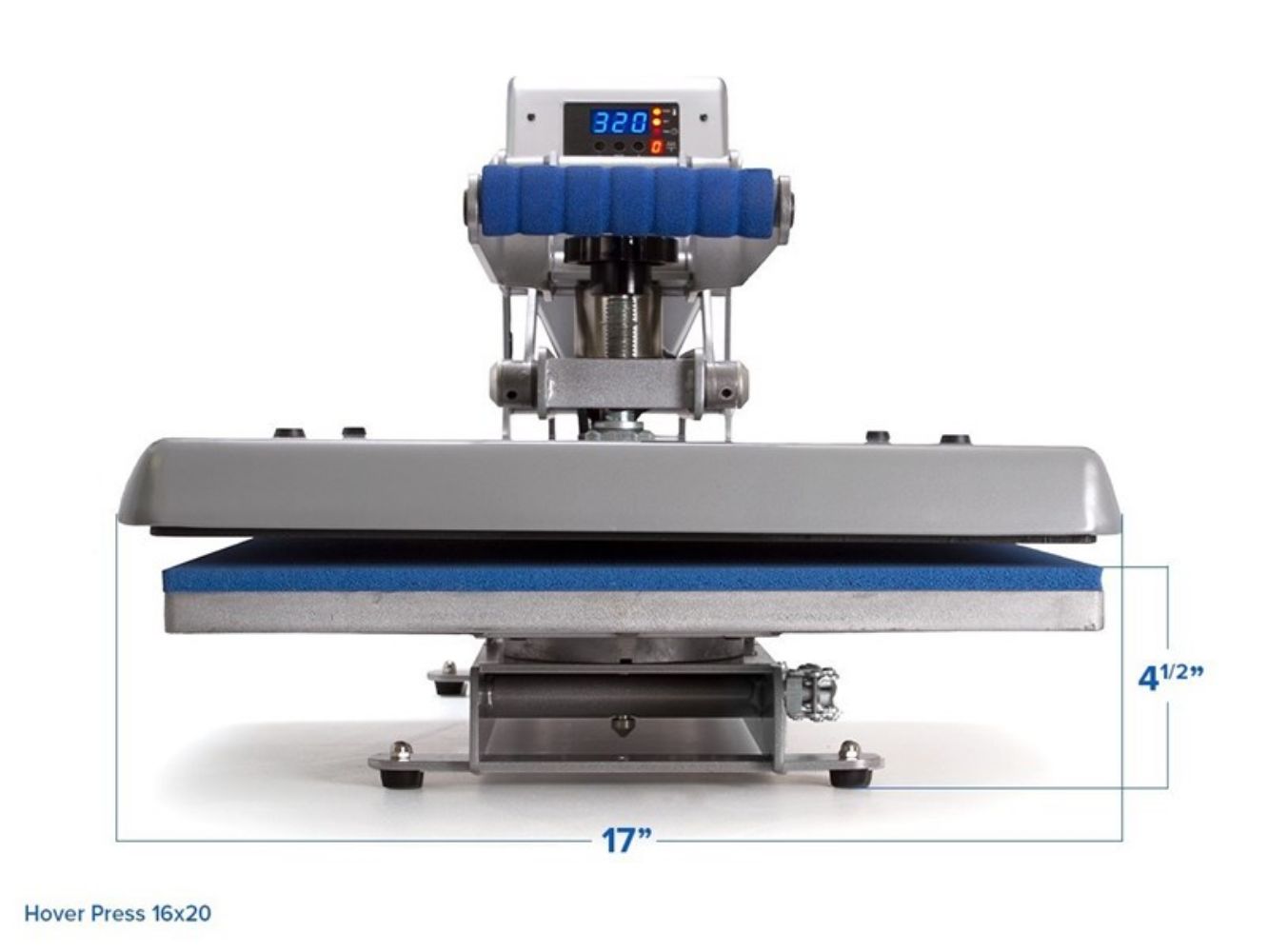

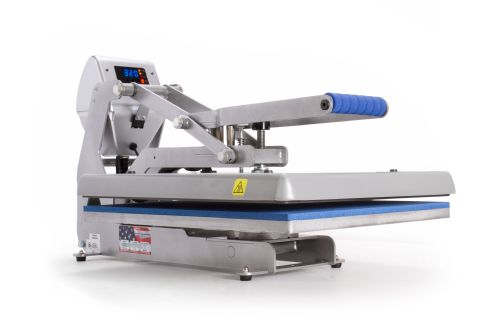

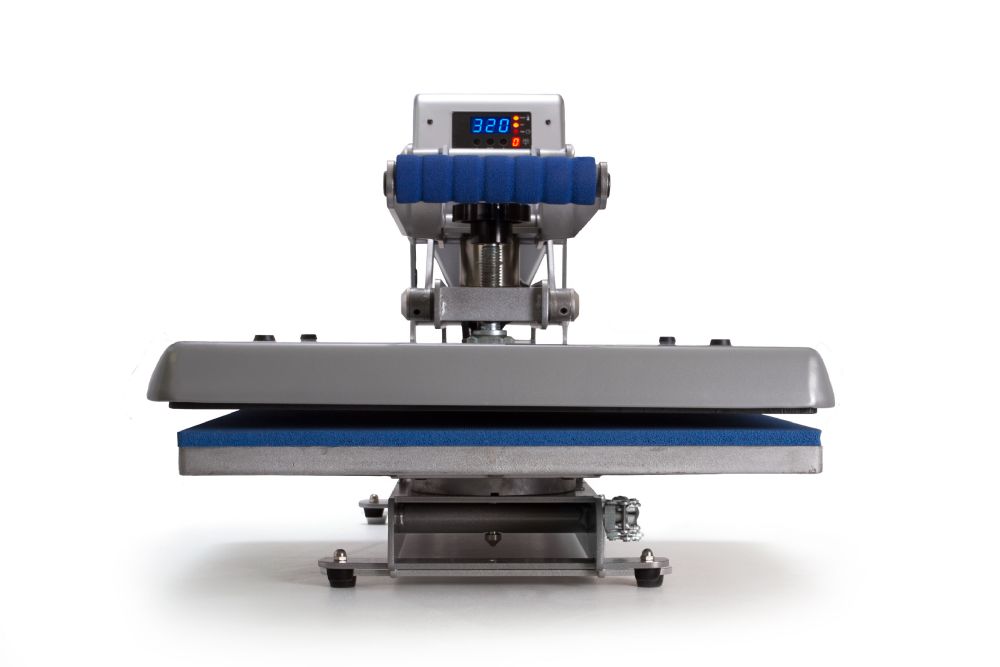

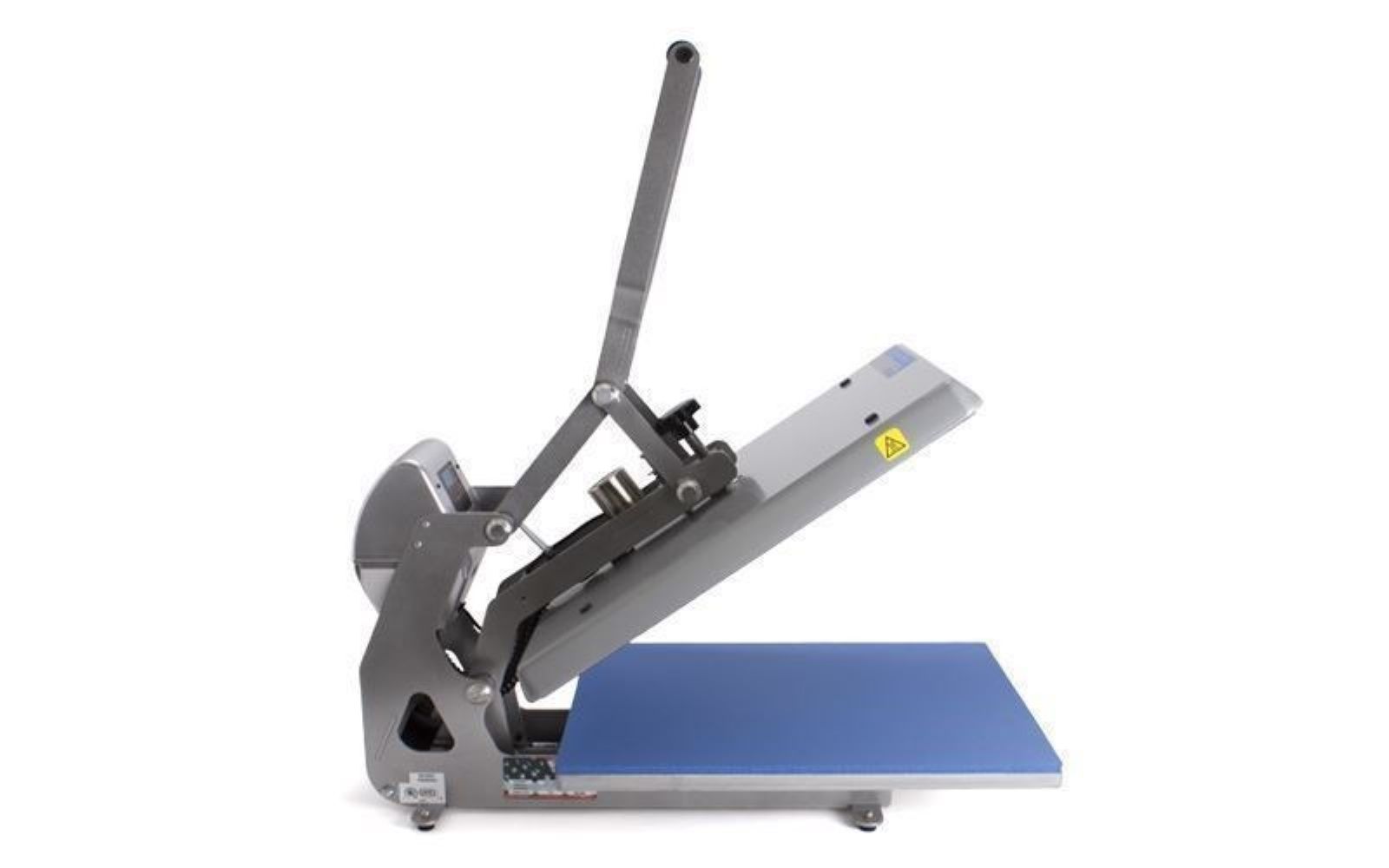

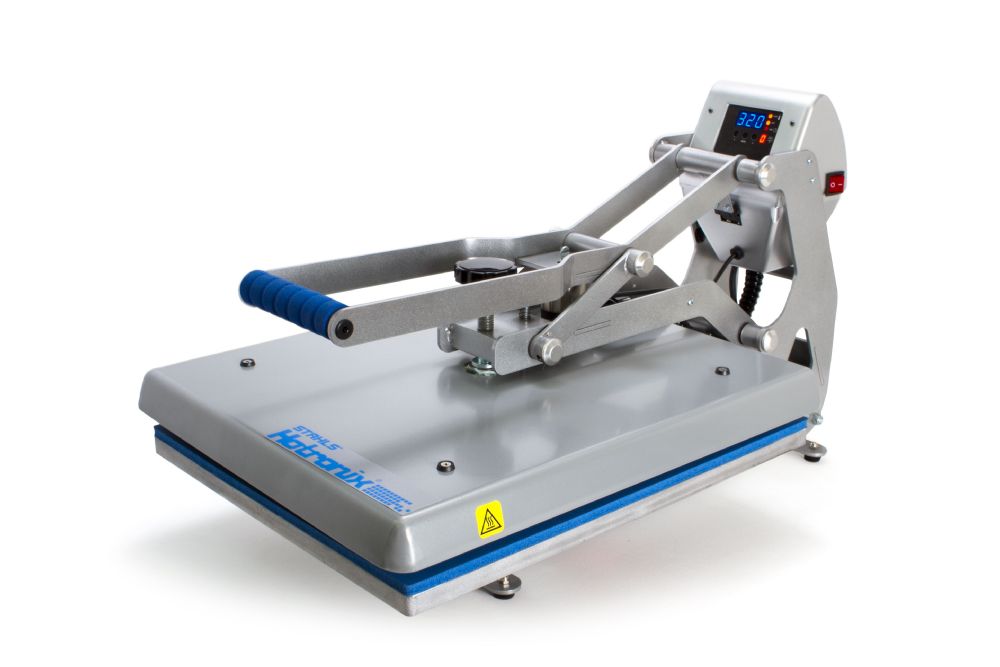

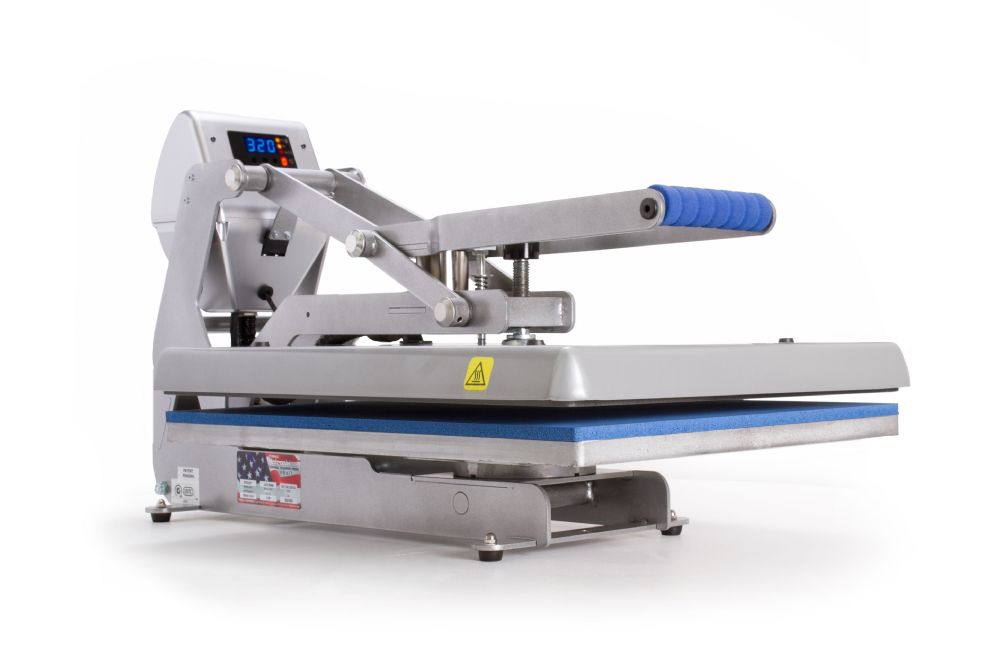

Hotronix Hover Heat Press 16x20

With two modes, hover for curing or press for application, the 16" x 20" Hotronix Hover heat press is great for DTG and screen printing operations and heat transfer applications. This unique machine works as a hover heat press for curing DTG and screen printing inks or as an automatically opening press for applying heat transfers.

ADDITIONAL DETAILS

• Hover mode cures DTG designs without smearing ink
• Opens automatically to prevent over-application
• Space-saving clamshell design
• Easy-to-read digital time, temperature, and pressure readouts
• Interchangeable lower platens are available in a variety of sizes (sold separately)
• Twin Timer allows users to pre-set individual time settings for two-step application or pre-heating and application
• Locks down easily with the patented magnetic assist, causing less fatigue on wrists and shoulders
• Over-the-Center Pressure Adjustment for even, edge-to-edge heat and pressure regardless of substrate thickness
• Proudly made in the USA

Features:

• Over-the-Center Pressure Adjustment
• CE/NRTLCO approved
• Quick-change lower platen
• 3/8" silicone pad
• Non-stick coated heater - stress relieved to prevent warping
• Cast-in tubular element every 2" to eliminate cold spots
• 3/16" laser-quality steel framework
• Heavy-duty pin and bushing pivot points
• 3/4" upper flotation heat platen
• Wide opening for easy layout
• Electrical Options:
  120 v; 15 amps; 1800 w
  240 v; 7.5 amps; 1800 w
• Must have designated circuit breaker

Benefits:

• No air compressor needed
• Opens automatically
• Easy to operate
• Digital readouts
• Actual Weight: 87 lbs
• Shipping Weight: 100 lbs

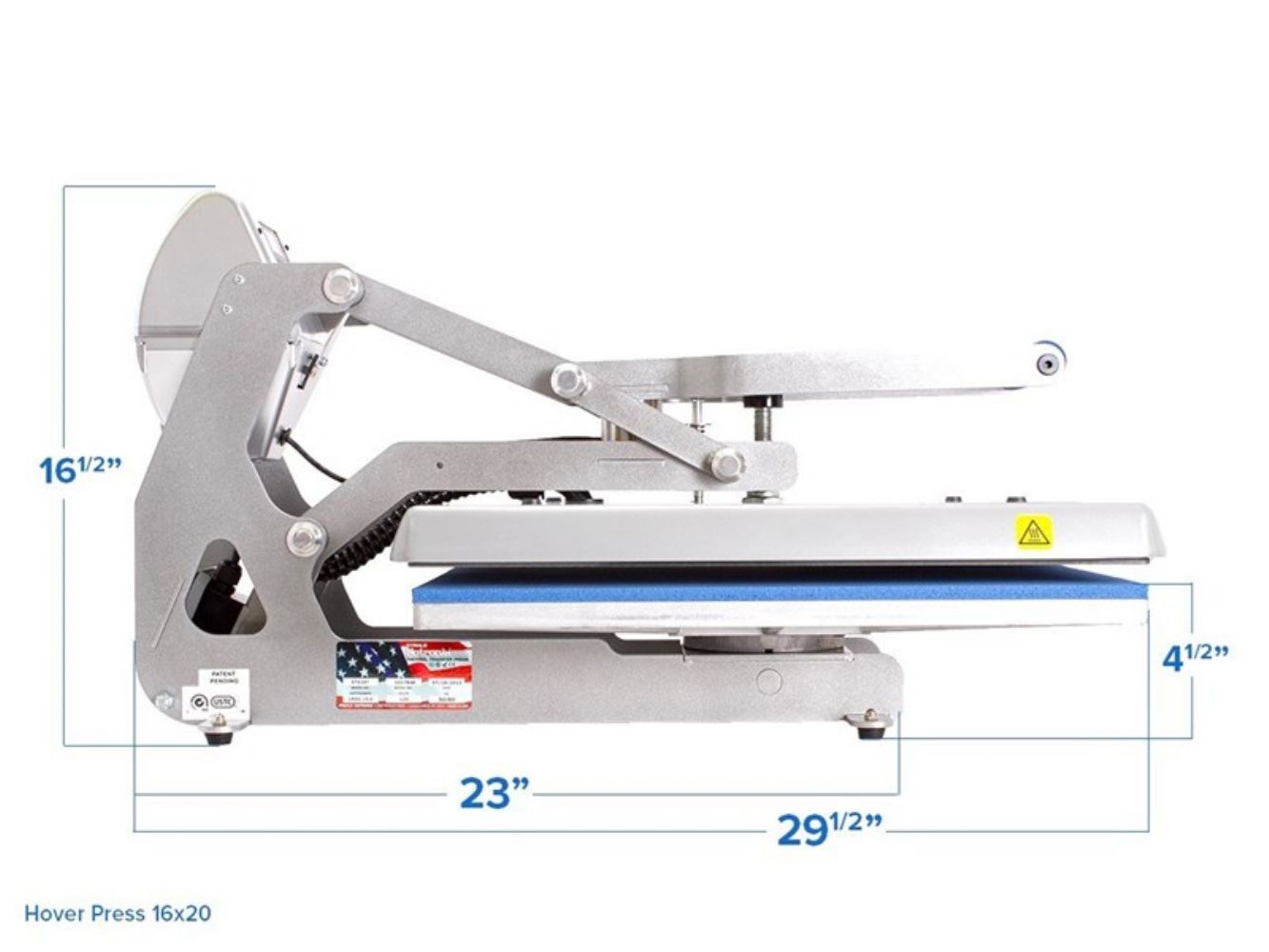

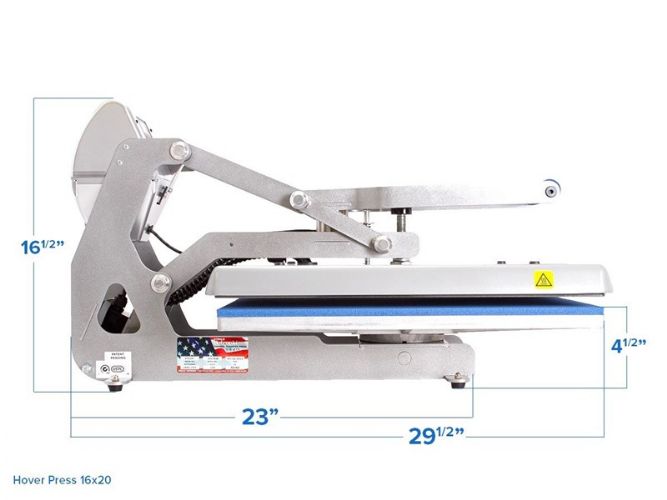

• Dimensions: 29" x 17" x 17"
• Shipping Dimensions: 36" x 25" x 21"

Warranty:

• Lifetime Warranty on Heating Element
• 5 years on Framework
• 2 years on Circuit board
• 1 year parts/labor
